Wireless IoT Level Monitor IP66 CE ROHS For Storage Tank Remote Data Collection

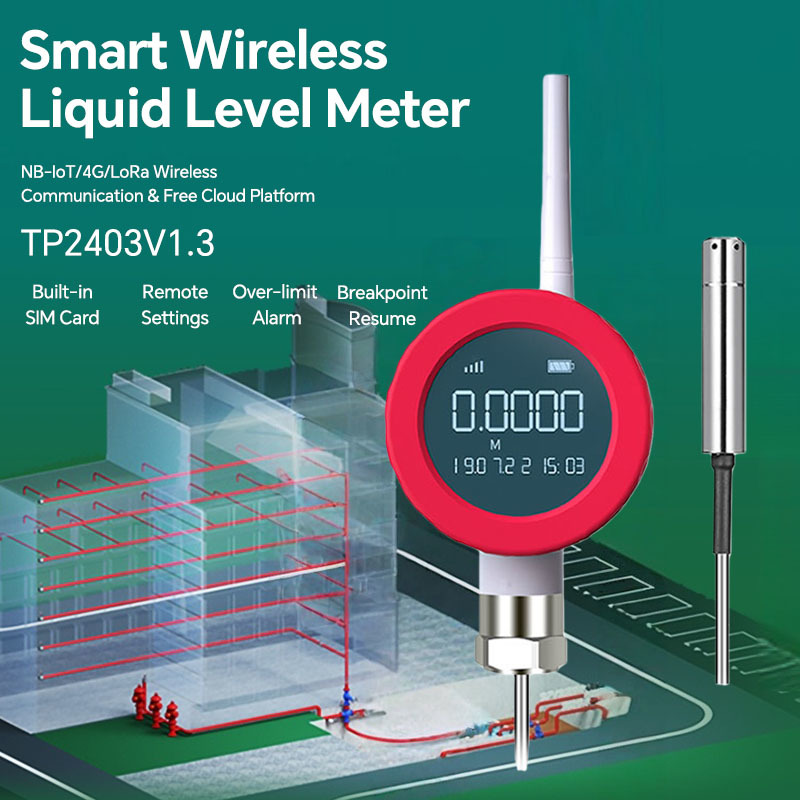

Monitor Smarter. Maintain Less. The TP2403 Wireless Waterproof Level Gauge delivers accurate liquid level measurement and reliable remote monitoring wherever you need it. With 0.5% FS accuracy, NB-IoT/4G/LoRa connectivity, a 2.4-inch LCD display, breakpoint data transmission, and up to 5 years of battery life, the TP2403 makes liquid level monitoring smarter, easier, and more efficient.
Technical Specifications
| Range |
0……50m……70m |
| Accuracy |
0.5%F.S |
| Battery Capacity |
17000mAh non rechargeable lithium battery |
| Protection Level |
IP66 |
| Display |
TFT |
| Power Consumption |
Standby current ≤80uA, average data transmission current ≤150mA |
| Communication |
4G,WiFi,LoRaWAN,LoRa,NB-IoT |
| Antenna |
External |
| Installation |
Vertical,Horizontal |
| Sampling Interval Time |
10 sec~2550 sec |
| Uploaded Interval Time |
1 Min~1440Mins, the shorter of Uploaded time you setup, the shorter lifetime of battery |
| Configuration |
USB C,Bluetooth |
| Wake-up Mode |
Button,timing |
| Uploaded Data Information |
Liquid level,Temperature, Battery Level, Signal, SIM card |
| Material |
Housing part Aluminum alloy, Sensor part: SS304 |
| Process connection |
NPT1/2,M20*1.5,BSP1/2 ect.. |
Advantages
- High Precision Measurement: Accurate to 0.5% Full Scale for reliable readings.
- TFT LCD Display: Clear 2.4-inch screen for easy viewing.
- IP66 Protection: Dustproof and waterproof for outdoor use.
- Long Battery Life: Up to 5 years with hourly data transmission.
- Over Limit Alarm: Alerts you when levels exceed limits.
Application
The TP2403 Wireless Waterproof Level Gauge is suitable for a wide range of liquid level monitoring applications, including fire water tanks, water supply tanks, industrial storage tanks, agricultural irrigation, and water treatment systems. With NB-IoT, 4G, and LoRa communication options, it enables reliable remote monitoring in locations where wired installation is difficult. Its low-power design, long battery life, and waterproof construction make it an ideal solution for long-term and low-maintenance liquid level monitoring.
FAQs
Are you a factory/manufacturer?
Yes, We are professional factory/manufacturer of paperless recorder,humidity and temperature logger,gas detector,wireless smart sensor,sound level meter,liquid level meter, IoT gateway,thermal imaging camera,power quality meter/analyzer ect
What's the main communication method?
We often accord client's requirements to meet their demands. such as GPRS,4G,WIFI,LoRa ect
Can I customized my logo and different communication methods?
Yes,For customized logo that will be okay,but there is a small MOQ.For communication method,please keep us informed in advance.we will prepare a quotation for you quickly as your requirements.
What's the delivery time?
Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your order quantity.
May I know your warranty?
Yes, usually it's 1 year. We can send you detailed warranty document if needed.
